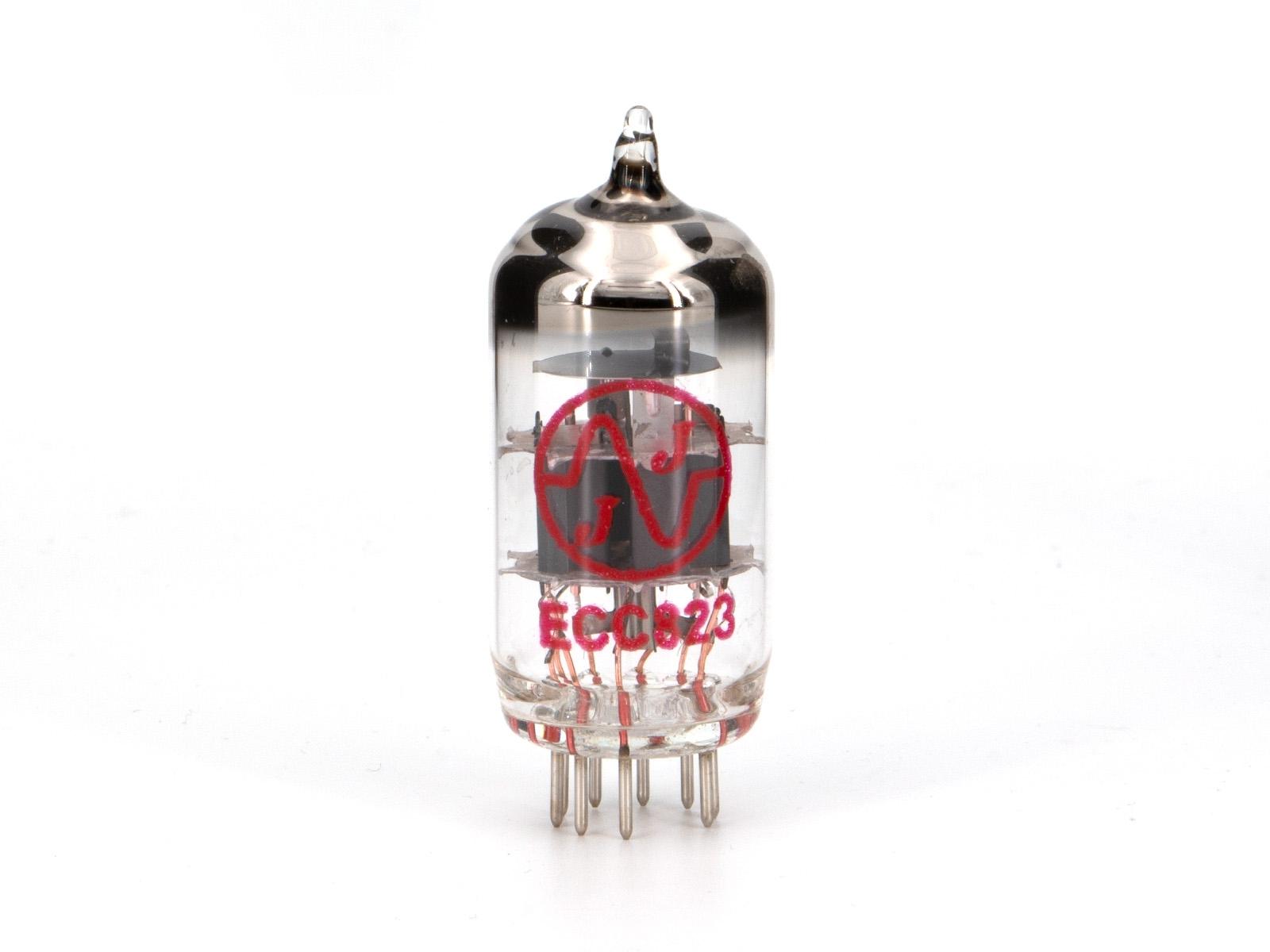

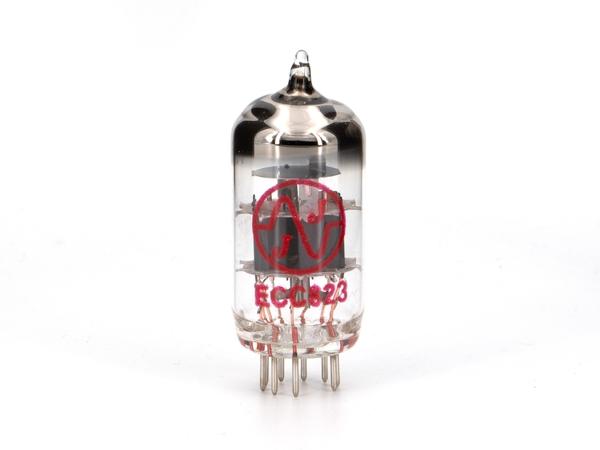

JJ ECC823 Premium Tested

£23.90

The  JJ ECC823 valve  has two triodes but one has a gain of 100 and the other half a gain of 20. It is the reverse of the ECC832 and 12DW7.

Made in Slovakia. Tested in-house.

180 day warranty.

Availability: 1 in stock

JJ ECC823 Premium Tested (A Reversed ECC832/12DW7)

The JJ ECC832 has two triodes but one has a gain of 100 and the other half a gain of 20.  This valve is a mirror image of the ECC832/12DW7, with the triode 1 and 2 connections reversed.

Think of it as half an ECC83 (12AX7) and half an ECC82 (12AU7). The JJ ECC823 premium tested  is certainly an interesting valve for experimenting with, especially if you want a clean sounding amp. It can lower the gain in amps, opening the door to some interesting sound modifications. Many Peavey and Ampeg amps take advantage of this unique valve.

Made in Slovakia. As this valve has two different gain stages, it can’t be matched/balanced for phase splitting duty.

We test all the valves at real amp voltages on our suite of vintage, modern, and custom-built valve testers. We audio check your valve for microphonics and noise.

The data sheet below is for the ECC832. Performance is identical except that you need swap over the cathode, grid and anode pins to be triode 1 ==> triode 2 and triode 2==> triode 1

Click here for the data sheet

Includes our class-leading 180 day warranty.

brand

★ Premium Valve Testing

Our Premium Tested Valves are the only valves in the world tested for noise, longevity, and real-world performance. We run them at real amp voltages, sound-check for noise and microphonics, and carefully match output sets to deliver maximum reliability and tone. You can't buy a better valve. Each one comes backed by our industry-leading 180-day warranty. Learn more about what makes these the world’s best valves.

★ Shipping Info

Shipments within the UK come by Royal Mail with 24 hour tracking (no deliveries on Sundays). We also offer international shipping. All orders securely packaged.

★ Safety

Please make sure your amp's bias is set correctly. If not, you could hamper your tone and even limit the life of the output valves. Also note that valve amps can retain high voltages even after being switched off. If you are not sure of fitting your valves, please seek the services of qualified personnel.
